Basler dart R daA1920-160uc (CS-Mount)
160 fps Frame rate
USB 3.0 Interface
IMX392 Sensor
2.3 MP Resolution
1/2.3" Sensor Format
-
IMX392 Sensor
-
2.3 MP Resolution
-
1/2.3" Sensor Format
-
160 fps Frame rate
-
USB 3.0 Interface

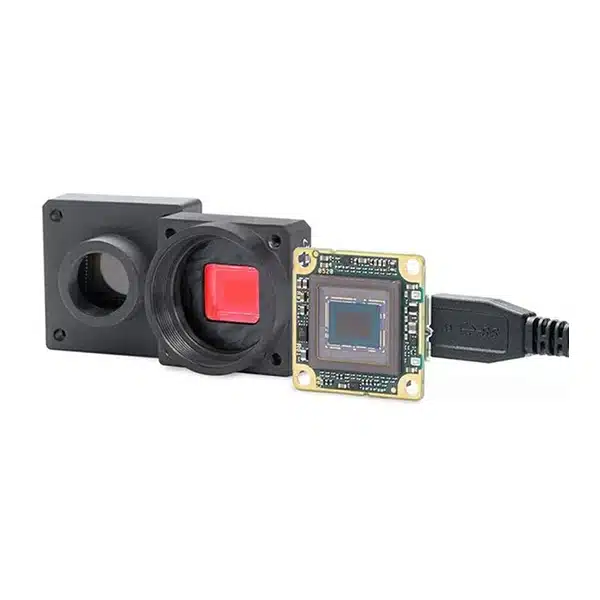

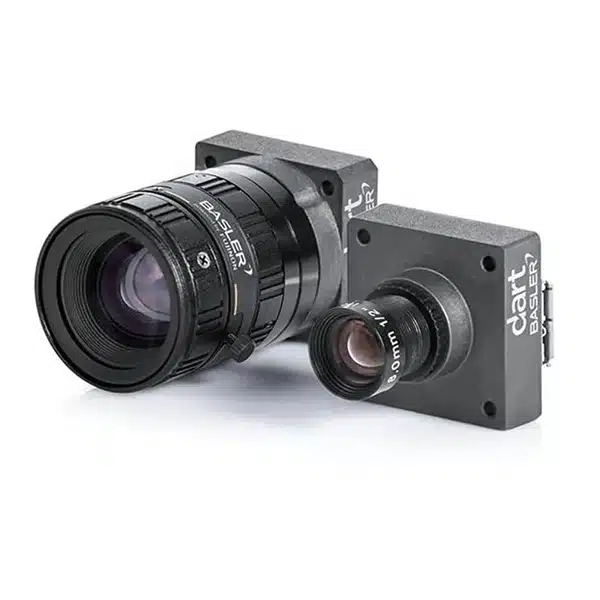

The Basler daA1920-160uc (CS-Mount) USB 3.0 camera with the Sony IMX392 CMOS sensor delivers 160 frames per second at 2.3 MP resolution. This model comes with a CS-mount.
باما تماس بگیرید
Specifications
General Information
| 108234 | Order Number |
|---|---|
| dart R | Product Family |
| Area Scan Camera | Camera Category |
Sensor
| Sony | Sensor Vendor |
|---|---|
| IMX392 | Sensor |
| Global Shutter | Shutter |
| "1/2.3 | Sensor Format |
| 7.82mm | Sensor Diagonal |
| CMOS | Sensor Type |
| 6.6mm × 4.2mm | Sensor Size |
| 1920px × 1200px | Resolution (H x V) |
| 2.3MP | Resolution |
| 3.45μm × 3.45μm | Pixel Size (H x V) |
| 160fps | Frame rate |
| Color | Mono/Color |
| Visible | Spectrum |
Camera Data
| USB 3.0 | Interface |
|---|---|
| USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) | Image Data Interface |
|
Pixel Bit Depth |
|
Synchronization |
| In-camera | Image Processing |
|
Exposure Control |
| 0 | Digital Input |
| 0 | Digital Output |
| 4 | General Purpose I/O |
| Via USB 3.0 interface | Power Supply |
| 2W | Power Requirements (typical) |
Housing
| Board Level | Housing Type |
|---|---|
| 19.9mm x 29.3mm x 29mm | Housing Size (L x W x H) |
| 15g | Weight |
| CS-mount | Lens Mount |
| 0°C - 50°C | Operating Temperature |
Manufacturer
Basler
Conformity
|
Conformity |
|---|
Documentation
