Basler ace U acA2440-35uc
35 fps Frame rate
-
USB 3.0 Interface
-
IMX264 Sensor
-
5 MP Resolution
-
2/3" Sensor Format
-
IMX264 Sensor
-
5 MP Resolution
-
2/3" Sensor Format
-
35 fps Frame rate
-
USB 3.0 Interface

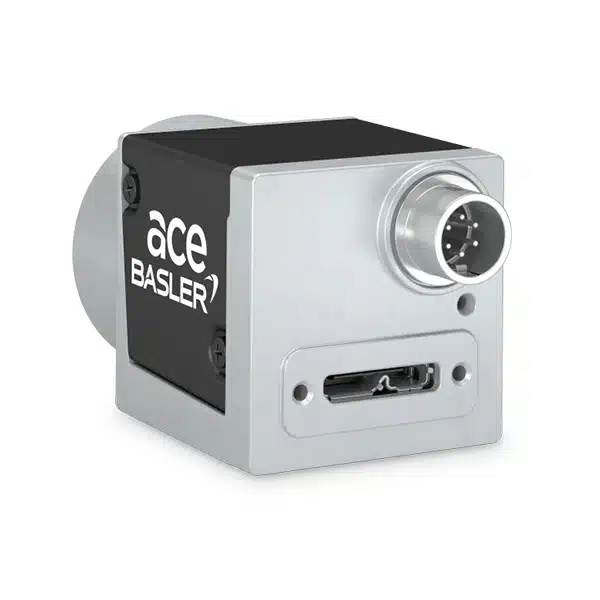

The Basler acA2440-35uc USB 3.0 camera with the Sony IMX264 CMOS sensor delivers 35 frames per second at 5.0 MP Resolution.
باما تماس بگیرید
Specifications
General Information
| 107209 | Order Number |
|---|---|
| ace U | Product Family |
| ace U | Product Line |
| Area Scan Camera | Camera Category |
Sensor
| Sony | Sensor Vendor |
|---|---|
| IMX264 | Sensor |
| Global Shutter | Shutter |
| "2/3 | Sensor Format |
| 11.02mm | Sensor Diagonal |
| CMOS | Sensor Type |
| 8.45mm × 7.07mm | Sensor Size |
| 2448px × 2048px | Resolution (H x V) |
| 5MP | Resolution |
| 3.45μm × 3.45μm | Pixel Size (H x V) |
| 35fps | Frame rate |
| Color | Mono/Color |
| Visible | Spectrum |
Camera Data
| USB 3.0 | Interface |
|---|---|
| USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) | Image Data Interface |
|
Pixel Bit Depth |
|
Exposure Control |
| 1 | Digital Input |
| Via USB 3.0 interface | Power Supply |
| 2.7W | Power Requirements (typical) |
Housing
| Box | Housing Type |
|---|---|
| 29.3mm x 29mm x 29mm | Housing Size (L x W x H) |
| 80g | Weight |
| C-mount | Lens Mount |
| 0°C - 50°C | Operating Temperature |
Manufacturer
Basler
Conformity
|
Conformity |
|---|
Documentation
