Basler ace U acA2040-55uc
55 fps Frame rate
-
USB 3.0 Interface
-
IMX265 Sensor
-
3 MP Resolution
-
1/1.8" Sensor Format
-
IMX265 Sensor
-
3 MP Resolution
-
1/1.8" Sensor Format
-
55 fps Frame rate
-
USB 3.0 Interface

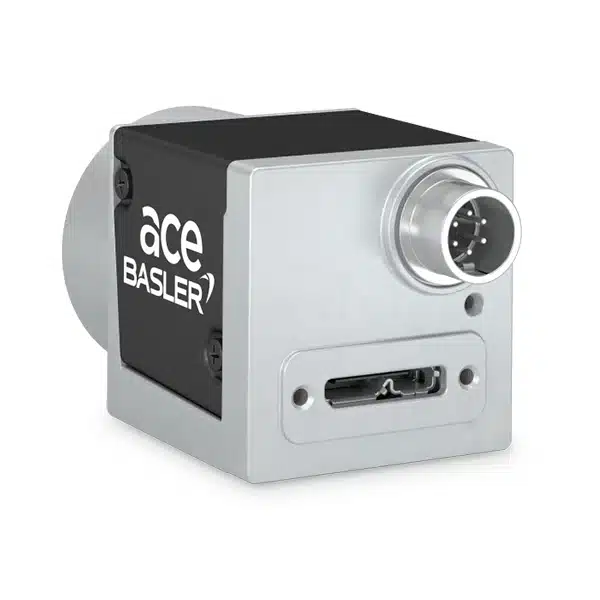

The Basler acA2040-55uc USB 3.0 camera with the Sony IMX265 CMOS sensor delivers 55 frames per second at 3.2 MP Resolution.
باما تماس بگیرید
Specifications
General Information
| 107211 | Order Number |
|---|---|
| ace U | Product Family |
| ace U | Product Line |
| Area Scan Camera | Camera Category |
Sensor
| Sony | Sensor Vendor |
|---|---|
| IMX265 | Sensor |
| Global Shutter | Shutter |
| "1/1.8 | Sensor Format |
| 8.84mm | Sensor Diagonal |
| CMOS | Sensor Type |
| 7.07mm × 5.3mm | Sensor Size |
| 2048px × 1536px | Resolution (H x V) |
| 3MP | Resolution |
| 3.45μm × 3.45μm | Pixel Size (H x V) |
| 55fps | Frame rate |
| Color | Mono/Color |
| Visible | Spectrum |
Camera Data
| USB 3.0 | Interface |
|---|---|
| USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) | Image Data Interface |
|
Pixel Bit Depth |
|
Exposure Control |
| 1 | Digital Input |
| Via USB 3.0 interface | Power Supply |
| 2.6W | Power Requirements (typical) |
Housing
| Box | Housing Type |
|---|---|
| 29.3mm x 29mm x 29mm | Housing Size (L x W x H) |
| 80g | Weight |
| C-mount | Lens Mount |
| 0°C - 50°C | Operating Temperature |
Manufacturer
Basler
Conformity
|
Conformity |
|---|
Documentation
General Information
| 107211 | Order Number |
|---|---|
| ace U | Product Family |
| ace U | Product Line |
| Area Scan Camera | Camera Category |
Sensor
| Sony | Sensor Vendor |
|---|---|
| IMX265 | Sensor |
| Global Shutter | Shutter |
| "1/1.8 | Sensor Format |
| 8.84mm | Sensor Diagonal |
| CMOS | Sensor Type |
| 7.07mm × 5.3mm | Sensor Size |
| 2048px × 1536px | Resolution (H x V) |
| 3MP | Resolution |
| 3.45μm × 3.45μm | Pixel Size (H x V) |
| 55fps | Frame rate |
| Color | Mono/Color |
| Visible | Spectrum |
Camera Data
| USB 3.0 | Interface |
|---|---|
| USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) | Image Data Interface |
|
Pixel Bit Depth |
|
Exposure Control |
| 1 | Digital Input |
| Via USB 3.0 interface | Power Supply |
| 2.6W | Power Requirements (typical) |
Housing
| Box | Housing Type |
|---|---|
| 29.3mm x 29mm x 29mm | Housing Size (L x W x H) |
| 80g | Weight |
| C-mount | Lens Mount |
| 0°C - 50°C | Operating Temperature |
Manufacturer
Basler
Conformity
|
Conformity |
|---|
Documentation
