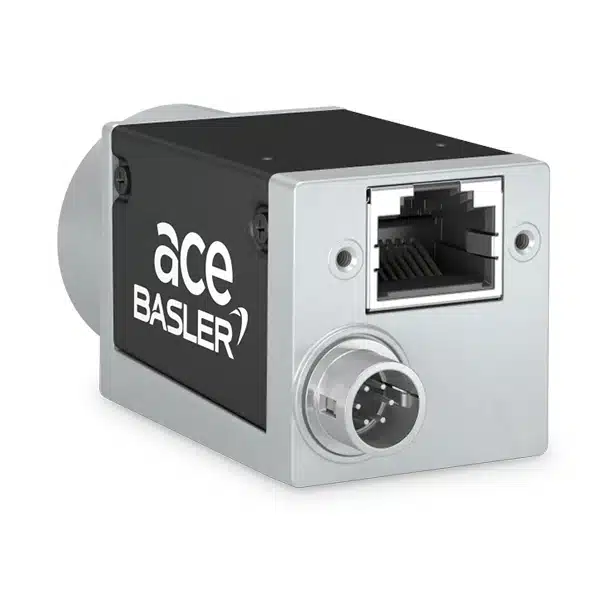

Basler ace U acA1440-73gc
73 fps Frame rate
-
GigE Interface
-
IMX273 Sensor
-
1.6 MP Resolution
-
1/2.9" Sensor Format
-
IMX273 Sensor
-
1.6 MP Resolution
-
1/2.9" Sensor Format
-
73 fps Frame rate
-
GigE Interface
The Basler acA1440-73gc GigE camera with the Sony IMX273 CMOS sensor delivers 73 frames per second at 1.6 MP resolution.
باما تماس بگیرید
Specifications
General Information
| 107649 | Order Number |
|---|---|
| ace U | Product Family |
| ace U | Product Line |
| Area Scan Camera | Camera Category |
Sensor
| Sony | Sensor Vendor |
|---|---|
| IMX273 | Sensor |
| Global Shutter | Shutter |
| "1/2.9 | Sensor Format |
| 6.21mm | Sensor Diagonal |
| CMOS | Sensor Type |
| 4.97mm × 3.73mm | Sensor Size |
| 1440px × 1080px | Resolution (H x V) |
| 1.6MP | Resolution |
| 3.45μm × 3.45μm | Pixel Size (H x V) |
| 73fps | Frame rate |
| Color | Mono/Color |
| Visible | Spectrum |
Camera Data
| GigE | Interface |
|---|---|
| Fast Ethernet (100 Mbit/s), Gigabit Ethernet (1000 Mbit/s) | Image Data Interface |
|
Pixel Bit Depth |
|
Exposure Control |
| 1 | Digital Input |
| PoE or 12-24 VDC | Power Supply |
| 2.9W | Power Requirements (typical) |
| 3.2W | Power Consumption PoE |
Housing
| Box | Housing Type |
|---|---|
| 42mm x 29mm x 29mm | Housing Size (L x W x H) |
| 90g | Weight |
| C-mount | Lens Mount |
| 0°C - 50°C | Operating Temperature |
Manufacturer
Basler
Conformity
|
Conformity |
|---|
Documentation
