Basler ace U acA1440-220um
227 fps Frame rate
-
USB 3.0 Interface
-
IMX273 Sensor
-
1.6 MP Resolution
-
1/2.9" Sensor Format
-
IMX273 Sensor
-
1.6 MP Resolution
-
1/2.9" Sensor Format
-
227 fps Frame rate
-
USB 3.0 Interface

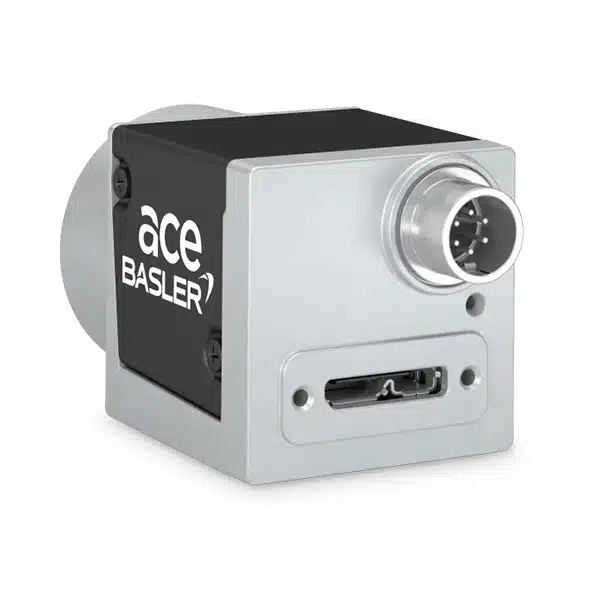

The Basler acA1440-220um USB 3.0 camera with the Sony IMX273 CMOS sensor delivers 227 frames per second at 1.6 MP resolution.
باما تماس بگیرید
Specifications
General Information
| 107652 | Order Number |
|---|---|
| ace U | Product Family |
| ace U | Product Line |
| Area Scan Camera | Camera Category |
Sensor
| Sony | Sensor Vendor |
|---|---|
| IMX273 | Sensor |
| Global Shutter | Shutter |
| "1/2.9 | Sensor Format |
| 6.21mm | Sensor Diagonal |
| CMOS | Sensor Type |
| 4.97mm × 3.73mm | Sensor Size |
| 1440px × 1080px | Resolution (H x V) |
| 1.6MP | Resolution |
| 3.45μm × 3.45μm | Pixel Size (H x V) |
| 227fps | Frame rate |
| Mono | Mono/Color |
| Visible | Spectrum |
EMVA Data
| (typical) 62.7% | Quantum Efficiency (typical/minimal) |
|---|---|
| 2.8e¯ (typical) | Dark Noise (typical/maximal) |
| 10.5ke¯ (typical) | Saturation Capacity (typical/minimal) |
| 71.5dB (typical) | Dynamic Range (typical/minimal) |
| 40.2dB (typical) | Signal-to-Noise Ratio (typical/minimal) |
Camera Data
| USB 3.0 | Interface |
|---|---|
| USB 3.0, nominal max. 5 Gbit/s (SuperSpeed) | Image Data Interface |
|
Pixel Bit Depth |
|
Exposure Control |
| 1 | Digital Input |
| Via USB 3.0 interface | Power Supply |
| 3.3W | Power Requirements (typical) |
Housing
| Box | Housing Type |
|---|---|
| 29.3mm x 29mm x 29mm | Housing Size (L x W x H) |
| 80g | Weight |
| C-mount | Lens Mount |
| 0°C - 50°C | Operating Temperature |
Manufacturer
Basler
Conformity
|
Conformity |
|---|
